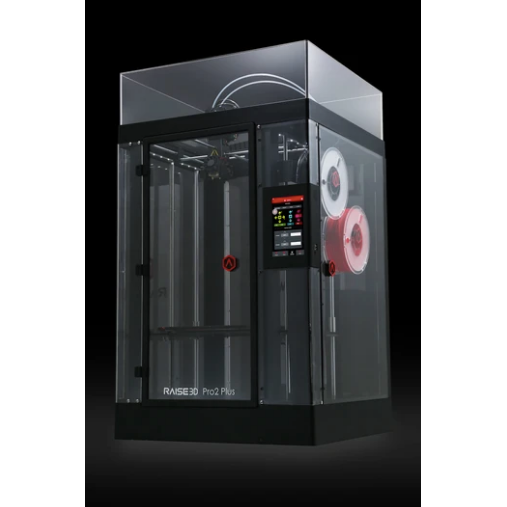

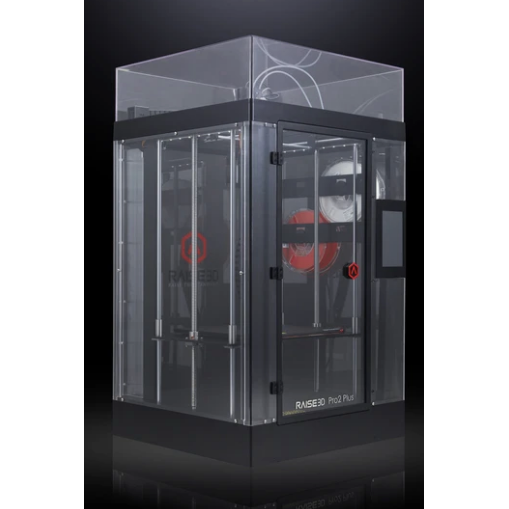

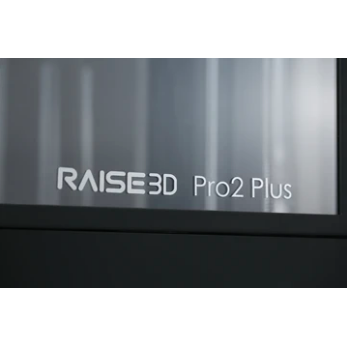

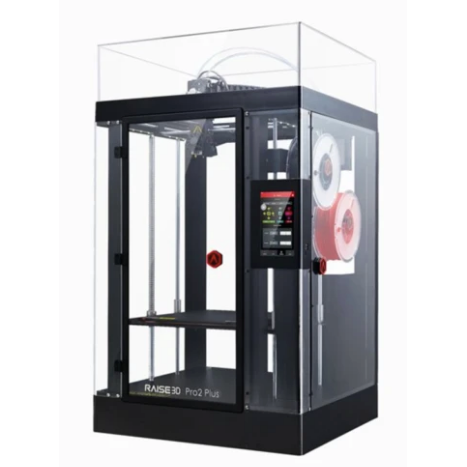

Raise3D Pro2 Plus Dual Extruder Large Format 3D Printer





Electronic Driven, Dual Extrusion with Retracting Hot Ends; 4× Increased torque performance
Massive Build Volume (12×12×23.8 inch / 305×305×605 mm)
0.01 mm Layer Height
Camera / HEPA Air Filtration

Diverse Filament Compatibility (Up to 300℃)
32 Bit Motion Control Board
7-inch Touch Screen
Resume Print after Power Loss or Filament Outage
Wireless Compatibility

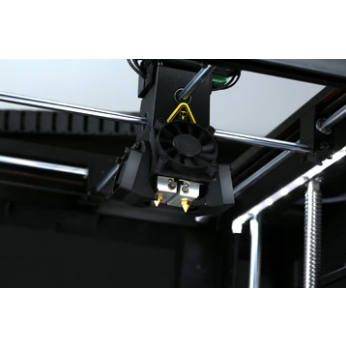

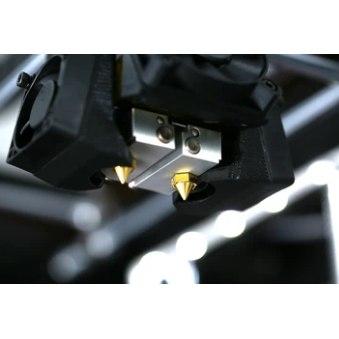

Electronic Driven Dual Extrusion with Retracting Hot Ends

Prints complex mechanical parts, supports a variety of multi-material filaments and improves print speed.

  • High repeatability (<0.005 mm, 5 micron)
  • Lightning speed (< 1 second switching time)
  • 1.5 mm lifting distance, compatible with flexible filaments
  • High reliability (tested > 100,000 times)



Think Bigger  - Up to: 12 x 12 x 23.8 inch | 305 x 305 x 605 mm



  • 24/7 Reliability
  • Multiple Fail Safe Systems
  • Industrial Grade Components

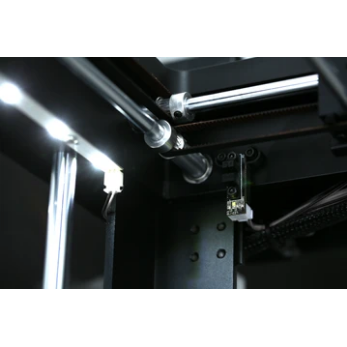

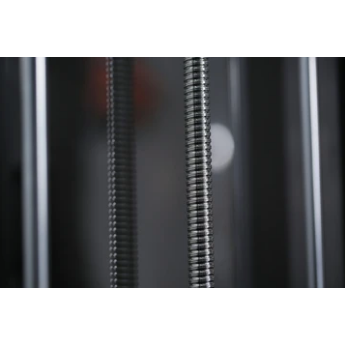

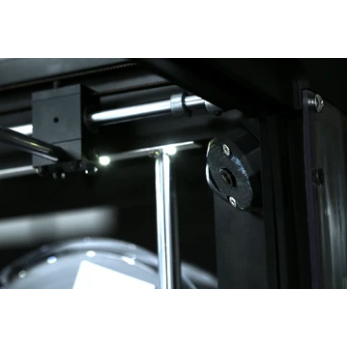

High Resolution- Unique Motion System for Superior Part Quality and Resolution

Interchangeable nozzles:
0.2 mm nozzle for finer X/Y detail

Precise positioning:
0.78125 micron positioning resolution on X/Y axis

Unmatched layer resolution:
0.01 mm layer thickness





Capable of Printing a Variety of Filaments Up to 300℃

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill







Intuitive User Experience

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control



  • 7-inch Touch Screen
  • Integrated Setting Control
  • On-Screen Assistance
  • Visual Model Selection





Never Lose a Print

Second Generation Power Loss Resuming




Next Generation Motion Controller

Best in class reliability / Precise voltage control / Silky smooth movement / Superior thermal performance

  • 400 MHz ARM Cortex-M7 32bit RISC FPU
  • Industrial grade components
  • Stand-alone motor driver
  • 256 micro-steps driver system

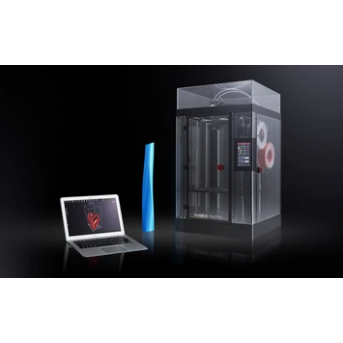

Remote User Interface

Access / Monitor / Control

Operate efficiently with ideaMaker by connecting wirelessly to your Pro2 Series Printer

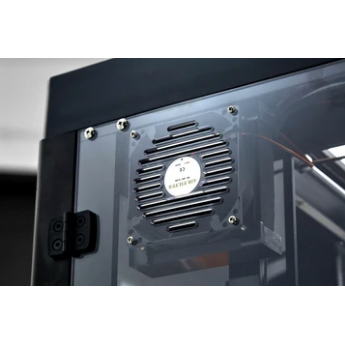

HEPA Air Filtration

Environmentally Friendly

Designed to Silently Remove Nano-Particles

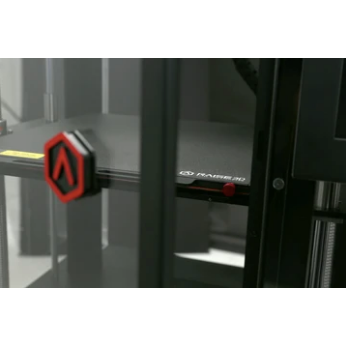

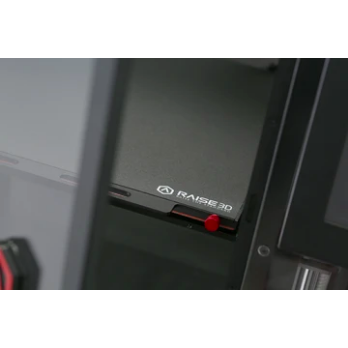

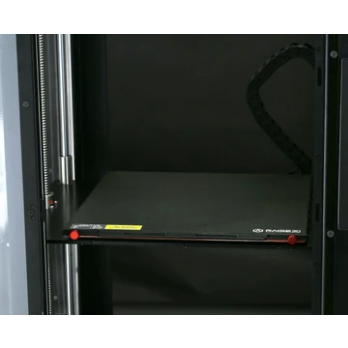

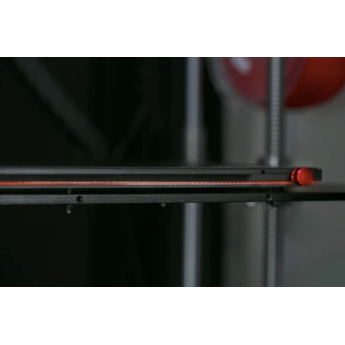

Build Plate System

Excellent warping prevention / Even heat distribution / Longer lifetime / Easy to remove

  • Aerospace grade material
  • High temperature silicone heating bed
  • Magnetically-held aluminium bed
  • Improved 4+9 points lock system







    Specs



    GENERAL



    Build Volume (W×D×H):

    Single Extrusion Print:
    12×12×23.8 in / 305×305×605 mm
    Dual Extrusion Print:
    11×12× 23.8 in / 280×305×605 mm



    Machine Size (W×D×H):

    24.4×23.2×43.5 in / 620×590×1105 mm



    Print Technology: FFF



    Print Head System: Dual-head with electronic lifting system



    Filament Diameter: 1.75 mm



    XYZ Step Size: 0.78125, 0.78125, 0.078125 micron



    Print Head Travel Speed: 30–150 mm/s



    Build Plate: Heated aluminum build plate with magnetic holding



    Max Build Plate Temperature: 110 ºC



    Heated Bed Material: Silicone



    Build Plate Leveling: Pre-calibrated leveling



    Supported Materials:

    PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill



    Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)



    Max Nozzle Temperature: 300 ºC



    Connectivity: Wi-Fi, LAN, USB port, Live camera



    Noise Emission (Acoustic):<50 dB(A) when building



    Operating Ambient Temperature: 15-30 ºC, 10-90 % RH non-condensing



    Storage Temperature: -25 ℃ to +55 ℃, 10-90 % RH non-condensing



    Technical Certifications: CB, CE, FCC, RoHS




    ELECTRICAL

    Power Supply Input:100-240 V AC, 50/60 Hz 230 V @3.3 A



    Power Supply Output: 24 V DC, 600 W





    SOFTWARE

    Slicing Software: ideaMaker



    Supported File Types: STL/ OBJ/ 3MF



    Supported OS: WINDOWS/ macOS/ LINUX



    Machine Code Type: GCODE



    Printer Controller

    User Interface: 7-inch Touch Screen



    Network: Wi-Fi, Ethernet



    Resume Print after Power Outage: Firmware recording, no need for battery installation. Protection from any condition



    Screen Resolution: 1024×600



    Motion Controller: ARM Cortex M7.400MHZ FPU



    Logic Controller: Freescale i.MX6, Quad core 1Ghz ARM processor




    Memory: 1 GB



    Onboard Flash: 8 GB



    OS: Embedded Linux



    Ports: USB 2.0x2, Ethernetx1
