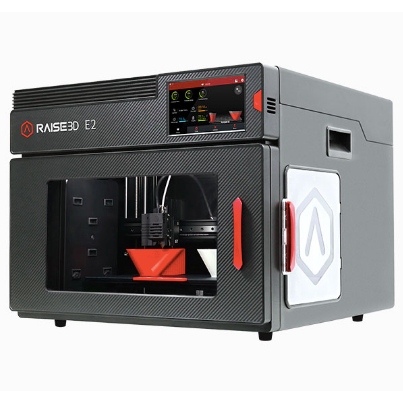

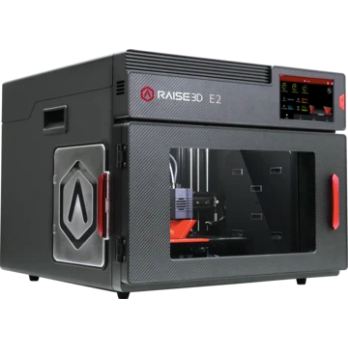

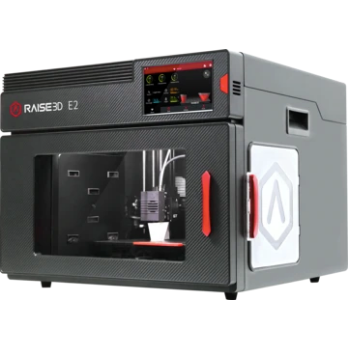

Raise3D E2 IDEX Independent Dual Extruders Auto-Leveling Desktop 3D Printer
The E2 is a desktop 3D printer with independent dual extruders (also known as IDEX). IDEX gives the E2 the ability to perform more advanced functions, such as Mirror Mode and Duplication Mode, making this printer ideal for professional 3D printing. This IDEX 3D printer features Easy Swap Print Heads for added convenience when performing maintenance or routine printing tasks. The E2’s Auto Bed Leveling and BuildTak FlexPlate are user-friendly features that contribute to producing high-quality 3D-printed parts. This desktop 3D printer can print with a variety of different filaments, and its unique extruder gear design enables it to use flexible 3D printing materials, such as TPU, more reliably and with better results. As with all 3D printers from Raise3D, the E2 can pair with ideaMaker, a 3D slicer software, ideaMaker Library, a platform for sharing 3D printer files with those in the Raise3D community, and RaiseCloud, a cloud-based 3D printing management platform.
Awards
Raise3D’s award-winning E2 is recognized as a benchmark and gold standard for professional 3D printing applications and 24/ 7 reliability.
What Makes the E2 a Professional Desktop 3D Printer?
Professional 3D printers, like the E2, are well-built and designed to be user-friendly, resulting in a better 3D printing experience for every application and user.
What is IDEX? Why is IDEX important?
IDEX stands for independent dual extruders, meaning the extruders can operate independently of one another along the same axis during printing to perform more advanced functions.
The E2 is a desktop 3D printer with IDEX. With IDEX, one extruder can remain motionless and off to the side while the second extruder prints the model, minimizing the risk of the nozzle on the motionless extruder interfering with the print job during dual or single extrusion printing.
What are Mirror Mode and Duplication Mode? Why are These Functions Important?
IDEX can perform two specialized functions, Mirror Mode and Duplication Mode.
Mirror Mode prints a model and an inverse of that same model at the same time. It is convenient because it eliminates the need to create an additional design file for the inverse model, and it saves the time that is usually spent printing the inverse model separately.
Duplication Mode is synchronized printing, meaning it uses both extruders to print a model and an exact copy of that model at the same time. It can double production capacity within the same timeframe.
What are Easy Swap Print Heads? And Why are They Important?
Easy Swap Print Heads are a convenient feature of the E2. These print heads are easy to remove, making it simple and quick to swap out a print head for another print head. There are a variety of reasons why swapping print heads is necessary, such as having to use a print head with a different type of nozzle.
Any spare Easy Swap Print Heads can easily be prepared with hardened nozzles, and nozzles of different sizes, such as 0.4, 0.6, and 0.8 nozzles to switch in a few steps and get back to printing.
What is Auto Bed Leveling? And Why is it Important?
A level bed is an important contributor to the quality of the final printing result. Bed leveling is the process of testing and confirming that the printing platform is completely level before beginning to print. It can be a time-consuming process to ensure this.
However, user-friendly 3D printers, like the E2, feature Auto Bed Leveling. Auto Bed Leveling uses a sensor to measure the distance between the printing bed and the nozzle at different locations of the bed and uses this information to adjust the nozzle to make sure the right distance between the bed and the nozzles is maintained during printing. This means the extruder can adjust to minor surface contour changes, resulting in improved bed adhesion a better final print quality.
What is a Flexible Build Plate? And Why is It Important?
A build plate is a flat surface that temporarily adheres to the bottom layer of the model during the printing. It is also the surface that an adhesive is applied to when printing with certain filaments. At times, prints may get damaged when being removed from the build plate.
The E2 features the BuildTak FlexPlate, a flexible build plate. The BuildTak FlexPlate bends, allowing for easy removal of 3D printed parts, minimizing potential damage that may occur to the final print when removing the print from the plate. The flexible build plate can also quickly regain its original shape to continue printing.
What is the Camera? And Why is it Important?
The E2 features a camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud allowing users to keep track of every print job remotely. The ability to check the 3D printing process gives peace of mind.

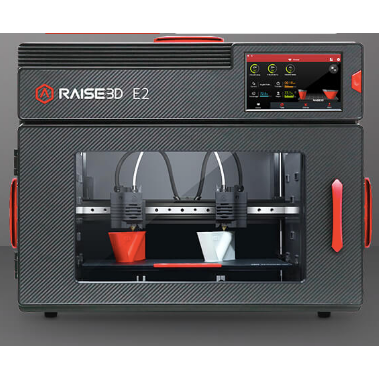

IDEX (Independent Dual Extruders) - Dual Prints Simultaneously

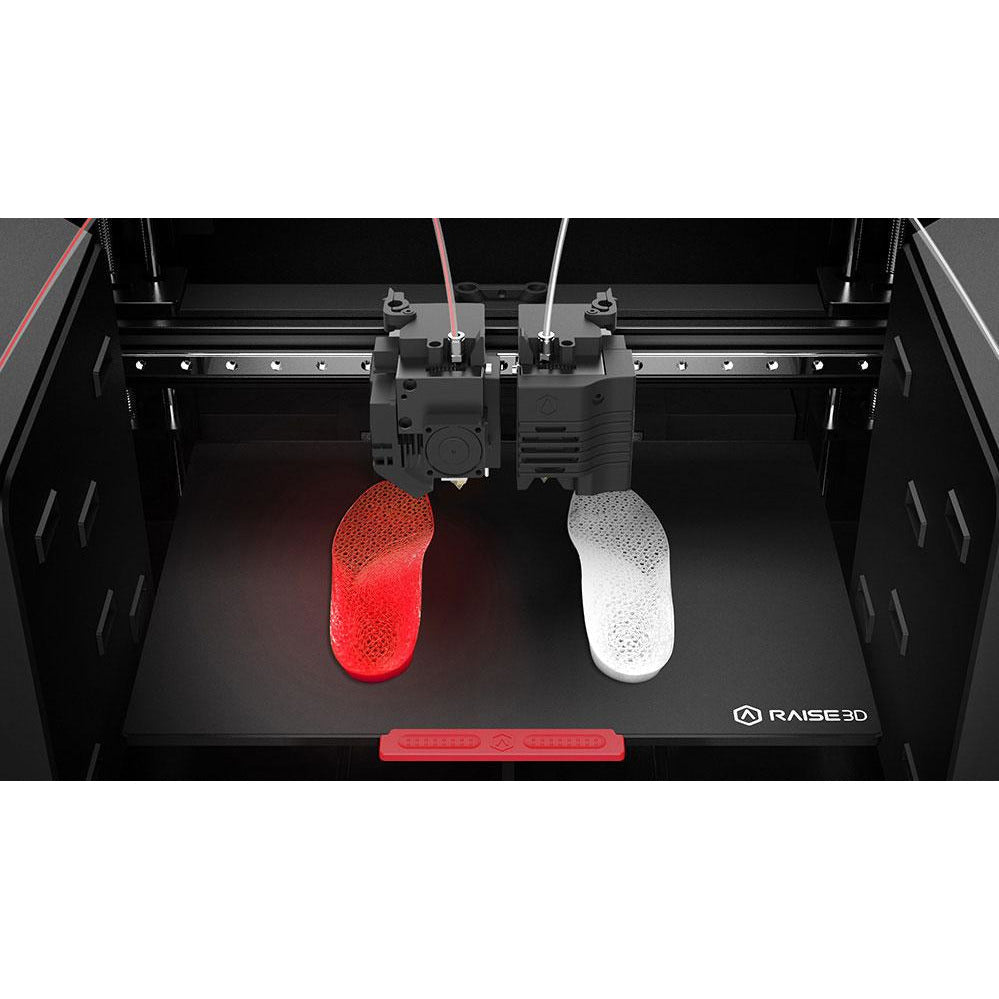

Mirror Mode
Produce 3D models and their inverse simultaneously, increasing productivity and reducing print time.
Duplication Mode
Use both extruders in synchronized printing, doubling production capabilities.

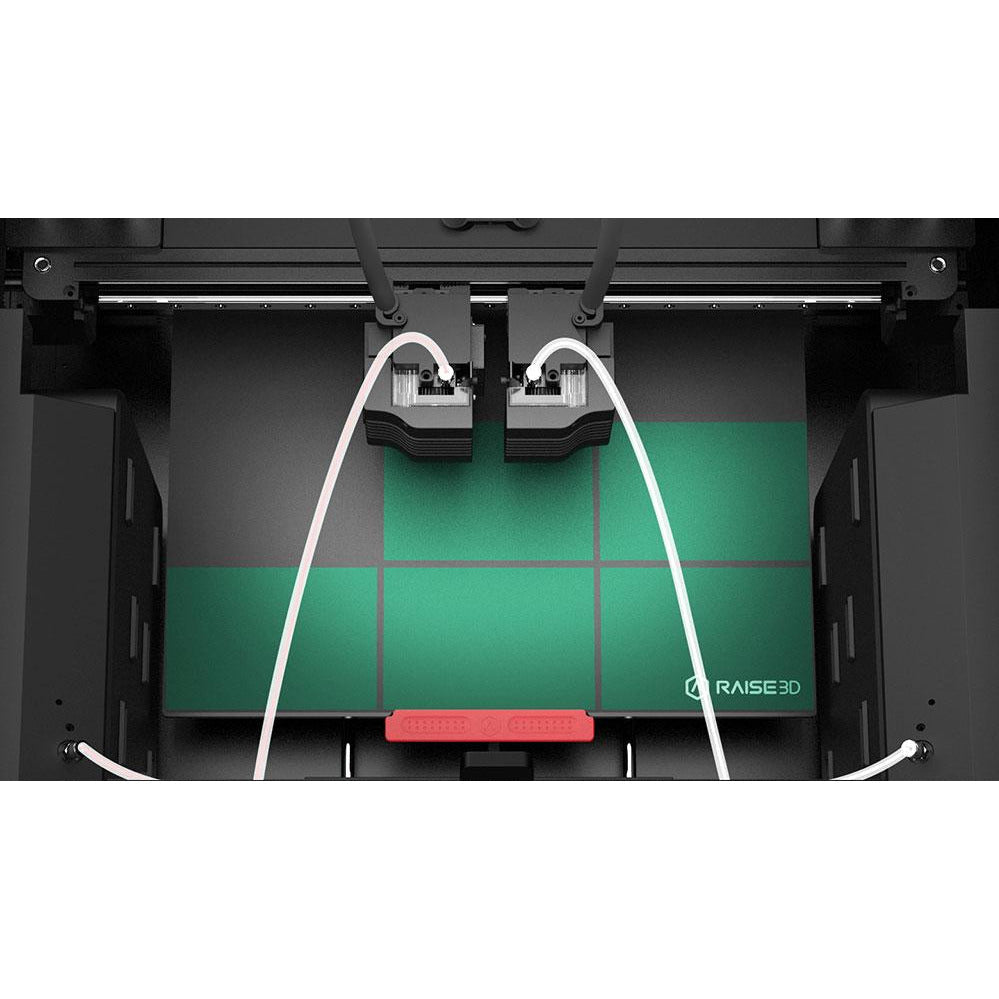

Auto Bed Leveling
Confirms that the printing platform is level whenever preparing to print. ABL maintains the distance between the print nozzles and bed, creating a uniform build area.
Improves bed adhesion and print quality by allowing the extruder to adjust to even minor surface contour changes.

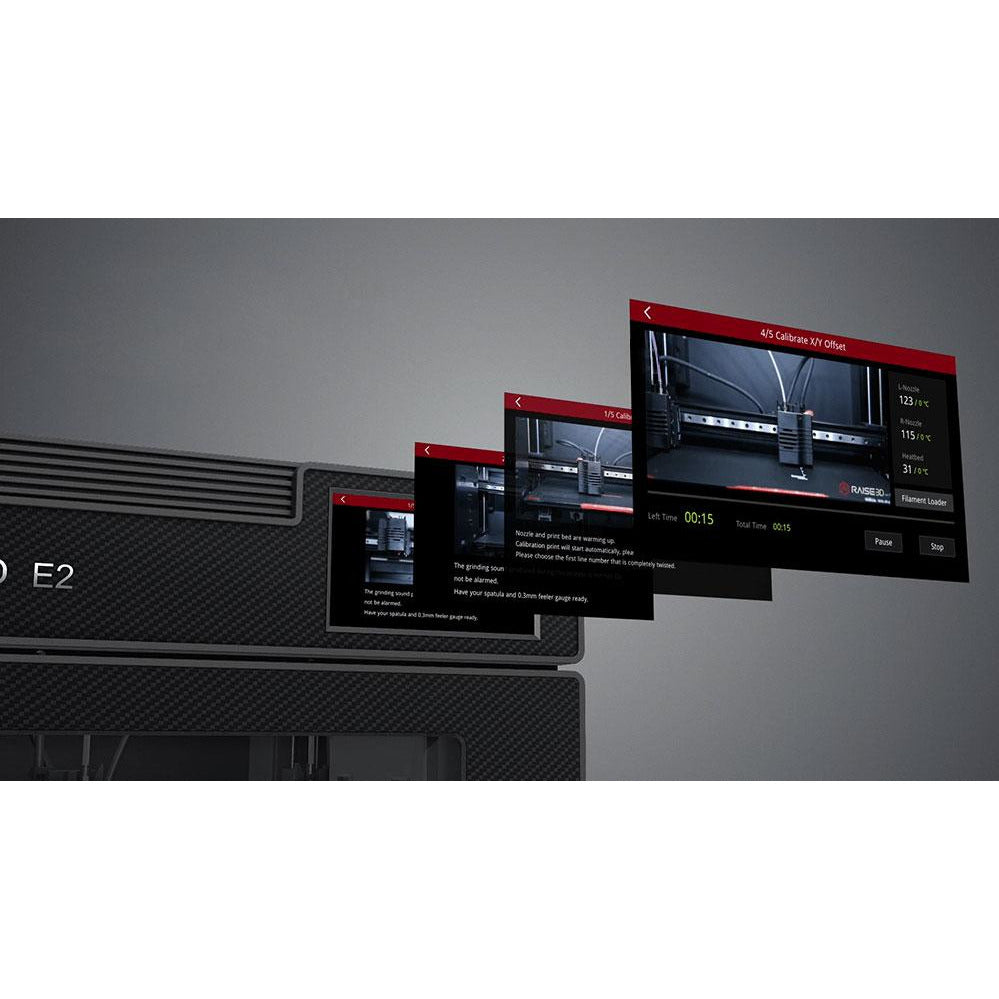

Industry First Video-Assisted Offset Calibration System
Guides users through a simple, video-assisted process for verifying that the E2 is geometrically aligned.
After completing the Offset Calibration Guide, the E2 can be used worry-free, with properly aligned extruders.
Large Build Volume*
Up to
13×9.4×9.4 inch | 330×240×240 mm
- Large build volume for bigger prints
- More options for designs
Safety Features
Opening a door is detected automatically, immediately pausing the print and keeping users safe.
Power Saving Button
Turn off the RaiseTouch and LED lights to save energy and print throughout the night.
An IDEX Printer with a Flexible Build Plate
Easily remove prints from the flexible build plate while minimizing potential print damage to quickly return to printing.
Seamless Workflow, Ultimate Connectivity
NXP ARM Cortex-A9 Quad 1GHz Controller
Capable of Printing a Variety of Filaments Up to 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill
Intuitive User Experience
Visual interface / Rapid reviewing / Visual print progress / Full adjustment control
7-inch Touch Screen
Integrated Setting Control
On-Screen Assistance
Visual Model Selection
The Best IDEX 3D Printer to Never Lose a Print
Power Loss Recovery
No longer will sudden lapses in power ruin a print. Power loss recovery allows users to print worry-free.
- Automatically stores task progress prior to power failure.
- Seamlessly resumes the most recent task after power is restored.
Filament Run-out Sensors
Dependable and accurate optical run-out sensors automatically pause the print when the 3D printer is out of filament.
- When filament runs out, a red light flashes and the print is paused. Then, users simply add filament and press resume.
- All types of filaments can be detected, regardless of color, material, or hardness.
Automatic Detection
Another safety feature of the E2 is that it can automatically detect when a door is opened and will immediately pause the print.
The E2 is compatible with a variety of 3D printing materials (known as filaments) to meet project requirements
Depending on the project goals, more than one 3D printing filament may be necessary to accommodate varying structural or functional requirements (some such requirements include flexibility, and strength). Sometimes multiple filaments are required within the same print job. Having a 3D printer that is compatible with different filament types is both cost-saving and practical for print jobs requiring multiple filaments.
The full metal frame acts as a reliable motion system for smooth movement and precise positioning for higher quality printing
High-quality 3D printing comes from high-quality 3D printers. The E2 desktop 3D printer uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible.
HEPA air filtration removes toxic particles released during the 3D printing process
The E2 desktop 3D printer has HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and in large and small workspaces. The E2’s HEPA air filtration operates silently, designed to work quietly in the background of any workspace.
Use a 7-inch touch screen for efficiency and monitor the printing process with 3D printing software
The E2 includes a camera that monitors the entire 3D printing process. This camera operates by connecting to RaiseCloud to allow users to keep track of every print job while on the move. This desktop 3D printer also features a 7-inch touch screen enabling users to interact with the printer directly. The touch screen also provides on-screen assistance and visual model selections to simplify operating and monitoring the 3D printer and 3D printing process. Finally, as with all Raise3D 3D printers, the E2 is compatible with ideaMaker, a 3D slicing software, and RaiseCloud, a cloud-based 3D printing management platform.
Raise3D Ecosystem
ideaMaker
ideaMaker is a free 3D slicing software from Raise3D, compatible with Raise3D printers and third-party printers.
RaiseCloud
RaiseCloud is a cloud-based 3D printing management platform capable of remotely monitoring the printing process and organizing print jobs for more efficient 3D printing.
ideaMaker Library
ideaMaker Library provides users with slicing profiles for various filaments, including Raise3D filaments and OFP certified filaments, simplifying the settings of printing parameters for different filaments.
Specs
GENERAL
Single Extruder Print:
13×9.4×9.4 inch / 330×240×240 mm
Dual Extruder Print:
11.6×9.4×9.4 inch / 295×240×240 mm
23.9×23.5×18.3 inch / 607×596×465 mm
Print Head System: Independent Dual Extruders
Filament Diameter: 1.75 mm
XYZ Step Size: 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed: 30–150 mm/s
Build Plate: Flexible Steel Plate with Buildtak
Max Build Plate Temperature: 110 ºC
Heated Bed Material: Silicone
Build Plate Leveling: Mesh-leveling with Flatness Detection
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill
Layer Height: 0.02- 0.25 mm
Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Hot End: V3P (V3 hotend with PTFE version)
Max Nozzle Temperature: 300 ºC
Connectivity: Wi-Fi, LAN, USB port, Live camera
Noise Emission (Acoustic):＜50 dB(A) when building
Operating Ambient Temperature: 15-30 ºC, 10-90 % RH non-condensing
Storage Temperature: -25 ℃ to +55 ℃, 10-90 % RH non-condensing
Technical Certifications: CB, CE, FCC, RoHS, RCM
Filter: HEPA Filter with activated charcoal
Net Weight: 35kg
Gross Weight (Carton Only): 41.3 kg
Gross Weight (Carton with Pallet): 50 kg
ELECTRICAL
Power Supply Input:100-240 V AC, 50/60 Hz 230 V @2 A
Power Supply Output: 24 V DC, 350 W
SOFTWARE
Slicing Software: ideaMaker
Supported File Types: STL/ OBJ/ 3MF
Supported OS: WINDOWS/ macOS/ LINUX
Printer Controller
User Interface: 7-inch Touch Screen
Resume Print after Power Outage: Firmware recording, no need for battery installation.
Screen Resolution: 1024×600
Motion Controller: Atmel ARM Cortex-M4 120MHz FPU
Logic Controller: NXP ARM Cortex-A9 Quad 1 GHz
Memory: 1 GB
Ports: USB 2.0x2, Ethernetx1
